Garmin Livescope System GLS10 LVS34

The Garmin LiveScope Plus System, featuring the GLS10 and LVS34 Transducer, is essential for serious anglers seeking a user-friendly setup that consistently enhances fish detection and improves catch rates.

The Garmin LiveScope System GLS10 LVS34 features enhanced screen resolution and seven vivid color palettes, making it easier to distinguish fish size, depth, and surroundings. The GLS10 ensures a seamless connection between display and transducer, delivering real-time sonar with highly accurate images. Clear Vision technology reduces noise and eliminates sonar artifacts, providing a clearer view of fish and structures. Built-in stabilization maintains steady, clear images even in rough weather and choppy waters, ensuring reliable performance in all conditions.

The LiveScope Plus System offers three versatile sonar modes to suit any fishing scenario, easily switched with a single button. Forward Mode scans the water ahead, allowing you to spot fish before passing over them, avoiding sudden stops. Down Mode provides a live view directly beneath your boat, while Perspective Mode delivers a comprehensive underwater view from your vantage point above, giving you detailed insight into the underwater environment.

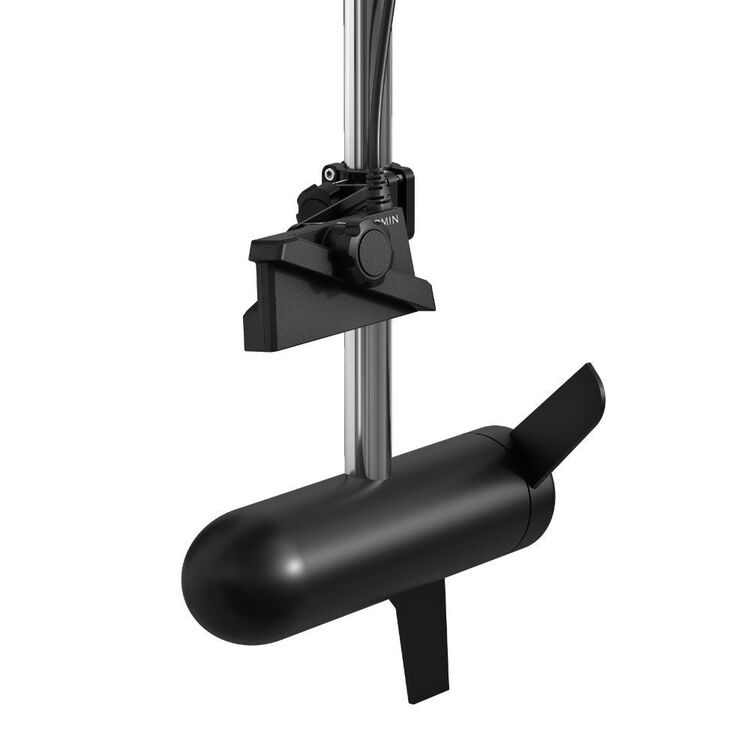

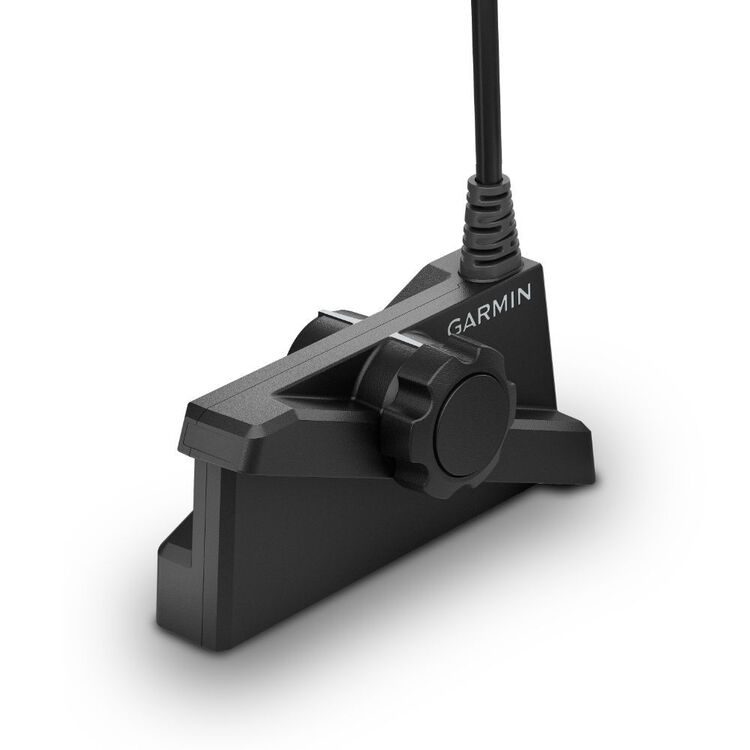

The LVS34 Transducer offers outstanding performance in a compact design, with flexible mounting options for straightforward installation on your boat. It ensures broad coverage and precise sonar readings. The LiveScope Plus System integrates smoothly with various Garmin display units, making it easy to incorporate into your current marine electronics setup.

Included:
- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 metre Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation

Features

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

CLEAR VISION

See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILISATION

A built-in stabilisation system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOUR PALETTES

Choose from seven vivid colour options — including Aqua, Caribbean, Lava and more — to see fish and structure in maximum contrast and clarity.

Specifications

General

Transducer beamwidth	20° x 135°
Transducer cable length	20 ft
Transducer number of pins	21
Dimension	GLS 10 sonar black box: 24.5 x 14.9 x 6.5 cm; LVS32 transducer: 13.7 x 9.7 x 4.6 cm
Weight	GLS 10 sonar black box: 2.0 kg; LVS32 transducer: 0.9 kg
Water Rating	IPX7
Temperature range	GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS32 Transducer: Operating: 0 C to 40 C

Electrical Features

Power Input	10-32 V
Power usage	21 W typical, 58 W max
Fuse	7.5 A
Compass safe distance	4″ (0.1 m)

Sonar Features

Frequency	530 - 1,100 kHz
Transmit power	500 W
Maximum depth	Down and Forward: 61.0 m
Sonar Type	Live
Target Separation @100'	14"
Perspective Mode Mount Included	Yes

Connections

Garmin Marine Network Ports	1 (small connector)
