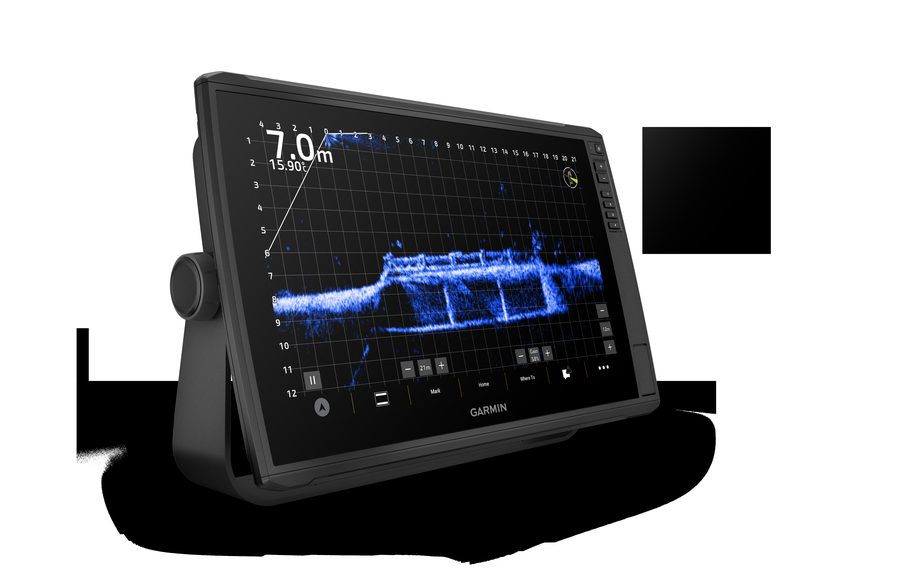

Garmin Echomap Ultra 2 165sv Chartplotter Sounder

Experience unmatched clarity and control with the ECHOMAP™ Ultra 2 16" Chartplotter, crafted for dedicated anglers who demand precision and performance. Featuring a vibrant full HD touchscreen with keyed assist, this chartplotter delivers stunning visuals for sonar and navigation mapping. It supports Garmin Navionics+™ and optional Vision+™ mapping, and is compatible with the complete range of LiveScope™ sonar systems (transducers sold separately).

With built-in Ultra High-Definition sonar and CHIRP technology, you’ll see beneath the surface in photo-like detail. Share your screen via HDMI output, control functions hands-free using Bluetooth® voice commands, and wirelessly network with other onboard devices to sync sonar, waypoints, and routes. Enhanced with multi-band GPS for pinpoint accuracy and NMEA 2000® compatibility, this unit integrates seamlessly with sensors, autopilots, and audio systems. The ActiveCaptain® app unlocks even more functionality, including screen recording and community data sharing. Mounting is simple with the included bail mount and knobs for optimal viewing angles.

Features:

- 16″ touchscreen display with keyed assist
- Full HD resolution for superior clarity and brightness
- Compatible with Garmin Navionics+™ and Vision+™ mapping
- Supports full lineup of LiveScope™ sonar systems
- Built-in UHD sonar with CHIRP and GT56 transducer (select models)
- HDMI output for external screen sharing
- Bluetooth® technology enables voice control
- Wireless networking for sharing sonar, waypoints, and routes
- Multi-band GPS for enhanced location accuracy
- Vivid color palettes for improved target and structure visibility
- NMEA 2000® compatibility for seamless integration
- ActiveCaptain® app support for updates and screen recording
- Force® trolling motor connectivity for route navigation

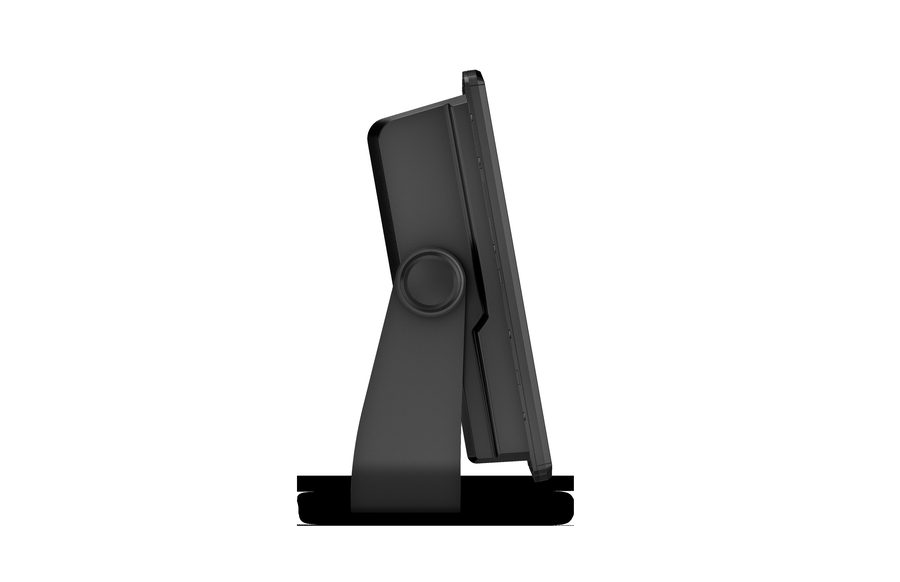

- Bail mount with knobs for adjustable surface mounting

Specifications:

Item	Details
Dimensions	43 x 26.6 x 8 cm (16.9″ x 10.5″ x 3.14″)
Weight	4.31 kg (9.5 lbs)
Water Rating	IPX7
Display Type	FHD, IPS
Display Size	34.5 x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diagonal)
Display Resolution	1920 x 1080 pixels
Mounting Options	Bail or flush
Input	Touchscreen with Keyed Assist
Accepts Data Cards	2 microSD Cards
Waypoints	5000
Track Points	50,000
Tracks	50 saved tracks
Navigation Routes	100
GPS Systems	GPS, GLONASS, Galileo, BeiDou
Receiver	10 Hz built-in
NMEA Compatibility	NMEA 2000 & NMEA 0183
WAAS Support	Yes
Multi-band GPS	Supported
Built-in Maps	Garmin Navionics+ Inland & Coastal
Auto Guidance+	Yes
Tide Tables	Yes
Optional Map Support	BlueChart g3/g3 Vision, LakeVü g3/g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, Standard Mapping, Garmin Quickdraw Contours
Chartplotter Features	AIS, DSC, Fusion-Link™, ActiveCaptain, Voice Commands, Sailing Features
Power Input	9 to 18 Vdc
Typical Current Draw	3.9 A at 12 Vdc
Maximum Current Draw	6.6 A at 12 Vdc
Max Power Usage	48 W at 10 Vdc
Sonar Display	Supported
Power Output	600 W
Traditional Sonar	Built-in CHIRP (70/83/200 kHz, L/M/H CHIRP)
ClearVü	Built-in 260/455/800/1000/1200 kHz
SideVü	Built-in 260/455/800/1000/1200 kHz
Panoptix™ & LiveScope	Supported
NMEA 2000® Ports	1
Video Output Ports	1 HDMI
Garmin Marine Network Ports	2 (large connector)
Transducer Ports	12-pin scanning sonar
Bluetooth® Pairing	Supported
ANT® Connectivity	Supported
Garmin Wi-Fi Network	Local connection supported
