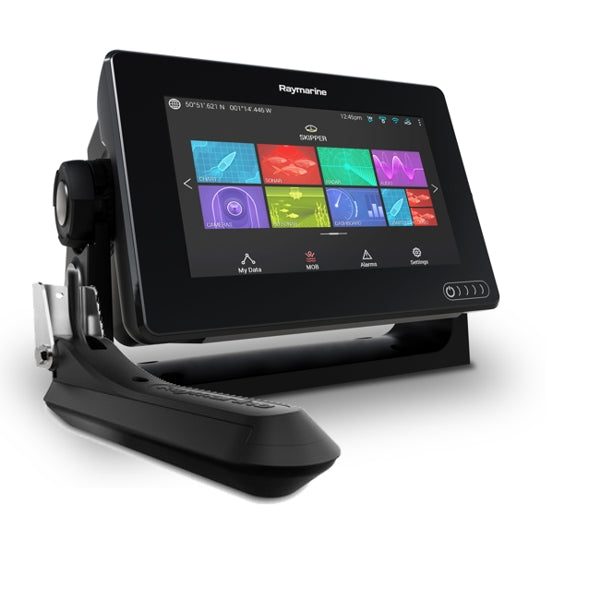

Raymarine Axiom 7 RV MFD Integrated RealVision 3D 600W Sonar RV-100 Transducer with Navionics Combo Unit

• Fully authoriused Raymarine Australia Pro Dealer
• MPN: E70365-03-AUS

Delivering customisation and simplicity in an ecosystem that is constantly evolving to work with the user to enhance their experience.

Presenting a host of personalisation and live animations, Lighthouse 3 offers free updates, adding to a continually growing feature packed system.

Axiom RV models add SideVision and RealVision 3D to the mix. A powerful 4-channel, 60 frequency, wide spectrum sonar experience, delivering life-like imagery.

The revolutionary all-in-one transducer features Gyro-stabilised AHRS (Attitude and Heading Reference System) which compensates and smooths out inconsistencies in vessel movement, for a clearer image and bottom resolution allowing for superior 3D imagery.

Includes

• MFD
• Trunion Bracket
• Trunion Knobs x 2
• Suncover (Trunion Mount)
• Panel mount gasket for surface/flush mounting
• M5x58 Threaded studs x 4
• M5 Thumb nuts x 4
• Documentation pack
• Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
• RealVision RV-100 transducer and associated fittings

Specifications

• Screen Size: 7.0" Optically Bonded LCD
• Display Resolution: 800 x 480 WVGA
• Screen Type: Touchscreen
• Mounting Options: Top / Flush / Bracket / Rear Mounting
• Networking: 1 x 10/100 Mbits/ Network (RayNet)
• Waterproofing: IPX6 / IPX7
• Memory Card Slot: 1x MicroSD
• Wi-Fi WiFi - 802.11 b / g
• Bluetooth: Bluetooth 2.1 + EDR power class 1.5 (supports AVRCP 1.0)
• Radar Compatible: Yes
• Thermal Night Vision Compatible: Yes – compatible with FLIR M100 and M200 cameras
• Video over IP Camera Support: Add up to 10 Video over IP network cameras
• Built-in Sonar: Model dependent
• External Sonar Compatible: Yes – support for Digital and CHIRP sonar modules
• GPS Built-in GNSS Receiver: GPS/GLONASS
• Optional Remote Controls: RMK-10
• AIS: With optional receivers and transceivers
• Audio Integration: Support for NMEA2000 compatible audio devices
• Voltage: 12V DC (8 V to 16 VDC)
• Operating Temperature: -25º C to +55º C
• NMEA2000: NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
• Unit Dimensions: 210 x 142 x 77mm
