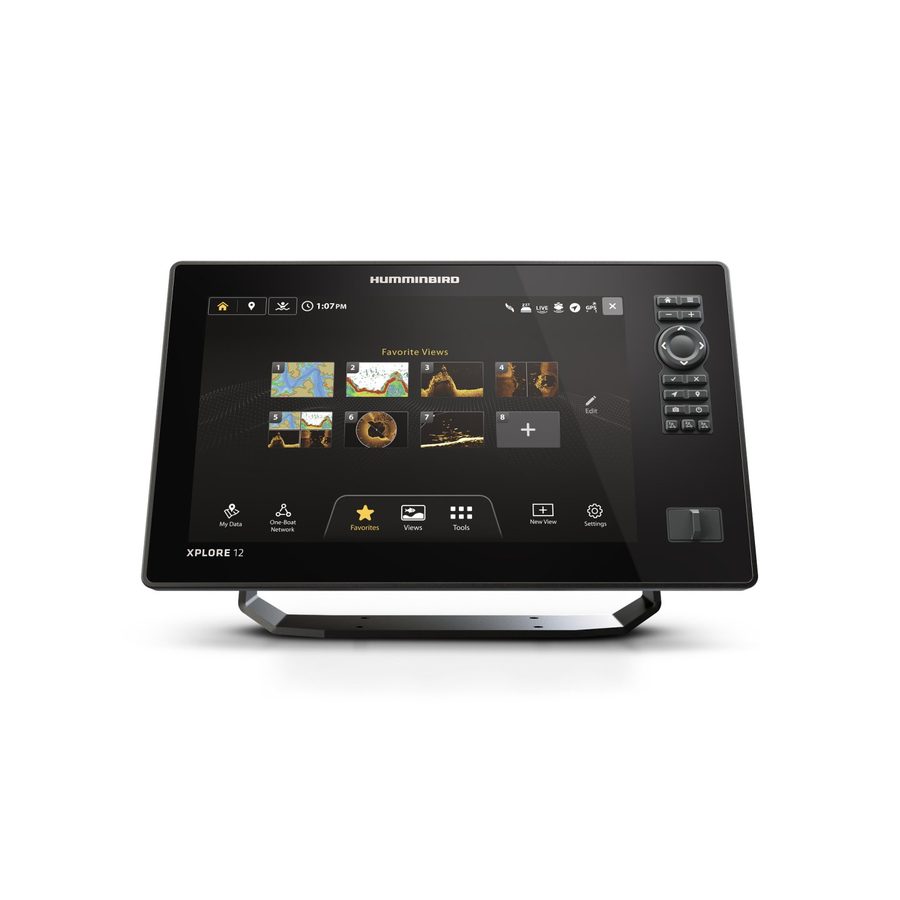

Humminbird Xplore 12 cmsi Fish Finder Sounder

The XPLORE 12 CMSI+ boasts a 12” ultra-clear display and intuitive Cross Touch™, along with MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and an internal GPS. This model also includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking, allowing for compatibility with the One-Boat Network™ from Humminbird, Minn Kota, and Cannon.

Features

- Coast Master Nav Card Included
- Cross Touch Interface
- In Pane Touch Targets
- Anti-glare, edge to edge screen display
- Updated Home Screen and User Interface
- Updated Menu/Setting structure
- New Keypad Design
- Two Micro SD card slots
- Twist lock cable connections
- Wi-Fi Software Updates
- Utilizes the same power cable as APEX units
- Dual Band GPS for better position accuracy
- High-Def Display
- Engineered for Polarized Eyewear

Specifications



Series	XPLORE
Display Size – Diagonal	30.73 cm
Display Pixel Matrix	WXGA 1280 x 800
Sonar Capability	MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible
CHIRP-Frequencies Supported	Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o
Depth & Range – Sonar	MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz
Fish Finder Functionality	Intuitive Cross Touch® Quick-Launch Home Screen
Connectivity	CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi
Memory Card Slot	Duel Micro SD
Waterproof Rating	IPX7
Power Input	10-20 volts
Power Output Peak-to-Peak	8000 Watts
Power Output RMS	1000 Watts
Transducer Mount Location	Transom
GPS Chartplotting	Included
GPS Trackplotting	Included
LakeMaster Compatibility	Yes
Coast Master Compatibility	Yes
Navionics Gold/HotMaps Compatibility	Yes
Navionics Platinum + Compatibility	Yes
Platinum Compatibility	Yes
Heading Sensor GPS Compatibility	Yes
Upgradable Software	Yes
